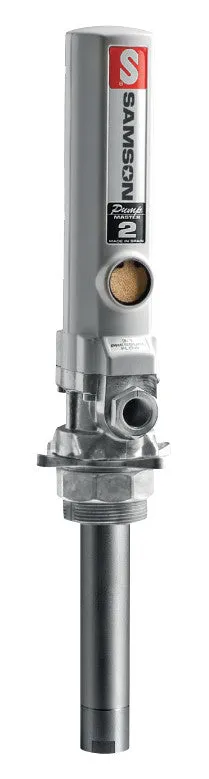

Samson 354 120 PumpMaster 2 3:1
Double acting air operated medium pressure pumps for dispensing lubricants from mobile units, oil distribution packages and small systems. Pumps include height 2″ NPTM adjustable bung adaptor for tank or drum bung mounting. Built in pressure relief port for optional (PN 609 007) pressure relief valve.
354 120 | PumpMaster 2 - 3:1 55 gal (205 l) drum pump
Fluids Handled:
- Synthetic and mineral based oil
- Transmission fluid
- Hydraulic oil
- Gear lube
Market Served:
- Service Shops
- Agriculture
- Marine
- Auto dealers
- Fast Lube centers
- Mining equipment maintenance
Specifications:
- Pump Pressure Ratio | 3:1
- Continuous Duty Flow Rate | 2.7 gpm (10 l/min)
- Maximum Free Flow Rate | 9.3 gpm (35 l/min)
- Air Pressure Operating Range | 20-140 psi (1.5-10 bar)
- Maximum Outlet Pressure | 420 psi (30 bar)
- Air Motor Effective Diameter | 1 1/2" (35 mm)
- Air Motor Stroke | 3" (75 mm)
- Air Consumption | 6.4 scfm (180 NL/min)
- Air Inlet | 1/4" NPTF
- Fluid Inlet | 1" NPTF
- Fluid Outlet | 3/4" NPTF
- Wetted Materials | Aluminium, Steel, NBR, PTFE
- Noise Level | 80 dB
- Application | Stub pump, 16 gal drum pump, 55 gal drum, 257/500 tank, 60" tank
- Simultaneous Dispense Points | 1
- Max. Line Length | 200' (60 m)
- Pump Description | Utility Medium Pressure
